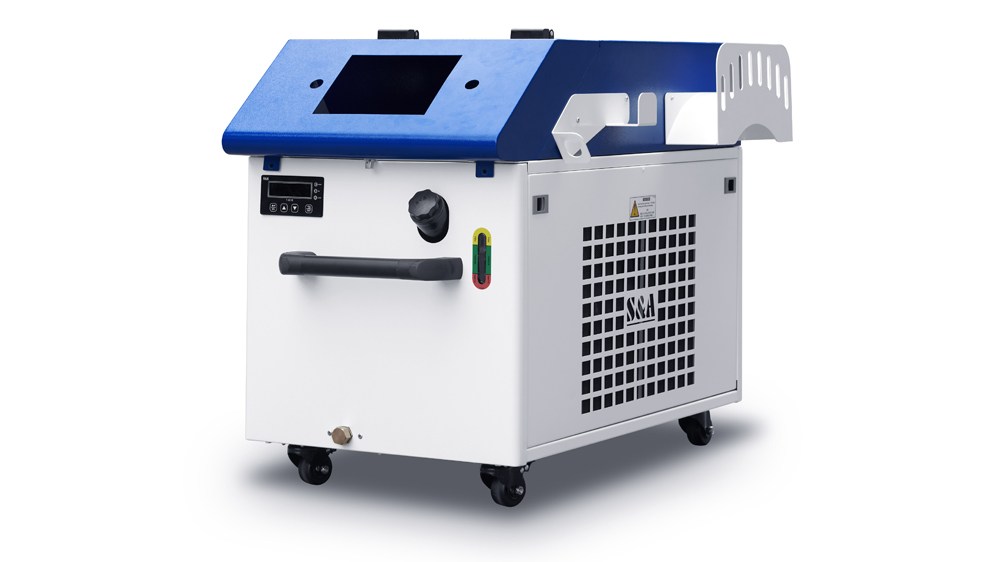

You'll love the convenience and efficiency of the CWFL-1500ANW all-in-one handheld laser welding machine. It includes a powerful, high precision YAG laser head with a lens system that can be adjusted to any point in the beam for more accurate welding.
All-in-one handheld laser welding machine CWFL-1500ANW is user-friendly in that users no longer need to design a rack to fit in the laser and the rack mount chiller. With built-in S&A chiller, after installing a fiber laser for welding, it constitutes a portable and mobile handheld laser welding machine. The outstanding features of this machine include lightweight, movable, space-saving, easy to carry to processing sites of various application scenarios. It is applicable to various welding scenarios. Note that the fiber laser is not included in the package.
11111112222222
Model: CWFL-1500ANW
Machine Size: 91 X 49 X 69cm (L X W X H)
Warranty: 2 years
Standard: CE, REACH and RoHS
| Model | CWFL-1500ANW | |
| Voltage | AC 1P 220V | |
| Frequency | 50Hz | 60Hz |
| Current | 0.9~13.1A | 0.9~14.6A |
| Machine power | 1.95kW | 2.27kW |
Compressor power | 1.15kW | 1.375kW |
| 1.55HP | 1.814HP | |
| Refrigerant | R-410a | |
| Refrigerant charge | 560g | |
| Precision | ±1℃ | |
| Reducer | Capillary | |
| Tank capacity | 16L | |
| Inlet and outlet | Φ12+φ6 | |
| Pump power | 0.13kW | |
| Max. pump lift | 40M | |
| Max. pump flow | 17.5L/min | |
| N.W. | 70Kgs | |
| G.W. | 82Kgs | |
| Dimension | 91 X 49 X 69cm (L X W X H) | |
| Package dimension | 104 X 64 X 87cm (L X W X H) | |
The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.
* Dual cooling circuit
* Active cooling
* Temperature stability: ±1°C
* Temperature control range: 5°C ~35°C
* All-in-one design
* Lightweight
* Movable
* Space-saving
* Easy to carry
* User-friendly
* Applicable to various application scenarios
(Note: fiber laser is not included in the package)
Heater
US standard plug / EN standard plug

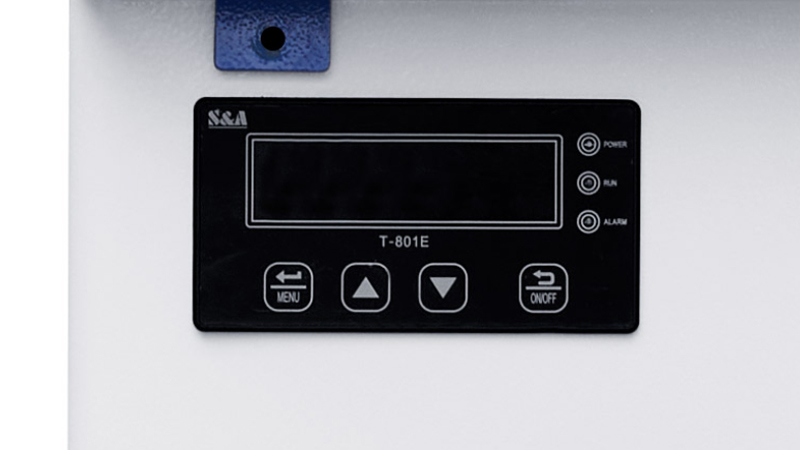

Dual temperature control
The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the temperature of the optics.

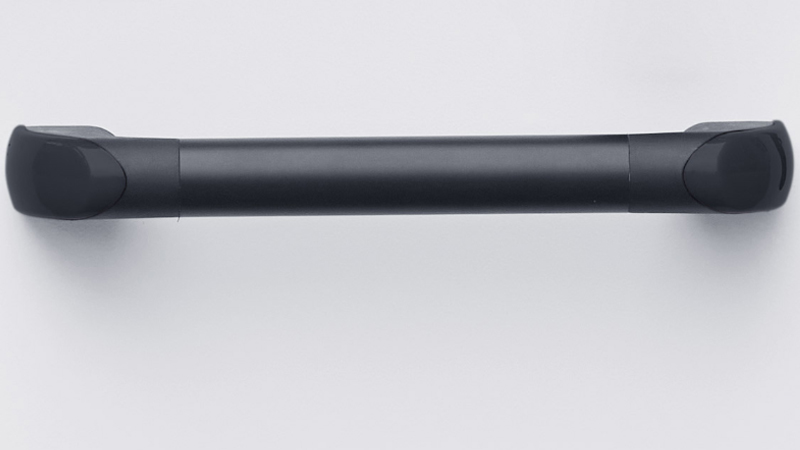

Integrated handles
The integrated handle helps move the machine easily.
Caster wheels for easy mobility
Four caster wheels offer easy mobility and unmatched flexibility.
